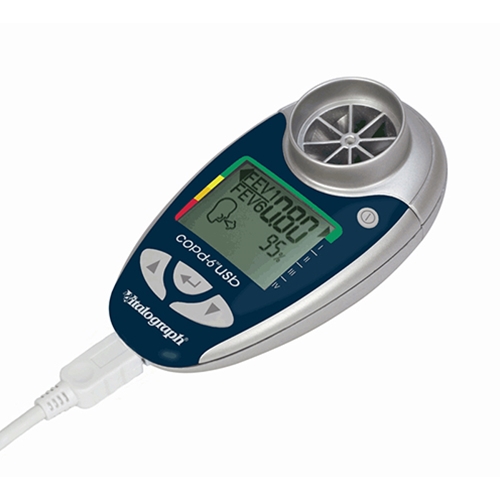

Vitalograph COPD-6 USB Respiratory Monitor

Price: $224.00
Catalog #:350070

For COPD Screening Compatible With Vitalograph Reports Software

The copd-6™ USB combines all the features of the copd-6 with the ability to link to your PC to generate electronic and hard copy reports through Vitalograph Reports software. Session data and device ID may be transmitted to Vitalograph Reports or an API developers' kit is available for providers of e-Diary, home hub and telemedicine solutions.

Features:

  • Automatically sends data after each blow
  • Can also send session data
  • Time and date of each session
  • Indicates blow quality and number of blows in each session

Transmits:

  • FEV1, FEV6 and FEV1/FEV6
  • Prediced values for the above
  • Age, gender and height
  • Device ID automatically transmitted with the data
Parameters Displayed FEV1/FEV6/ratio and % predicted
Quality of Blow Indicator Yes
Obstructive Index Mild, Moderate, Severe (FEV1% predicted)
COPD Classification Normal (not COPD); Stage I, II, III & IV (FEV1% predicted)
Lung Age Indicator Yes
Flow Impedance Better than 0.15 kPa/L/s at 14 L/s
Operating Temperature Range 17 - 37 °C (62.6 – 98.6 °F)
Sensor Stator rotor
Accuracy Better than ± 3%
Range 0 - 9.99 L BTPS
Size 113 x 63 x 48mm
Weight 55g net
Display Custom Liquid Crystal Display
Power AAA batteries
Performance Standards ISO 26782:2009 ISO 23747:2007 ATS/ERS 2005
Safety Standards IEC 60601-1:2005
Medical Safety Standard Medical Devices 93/42/EEC (as amended)
Designed and manufactured to following QA/GMP standards ISO 13485:2003 FDA 21CFR820
