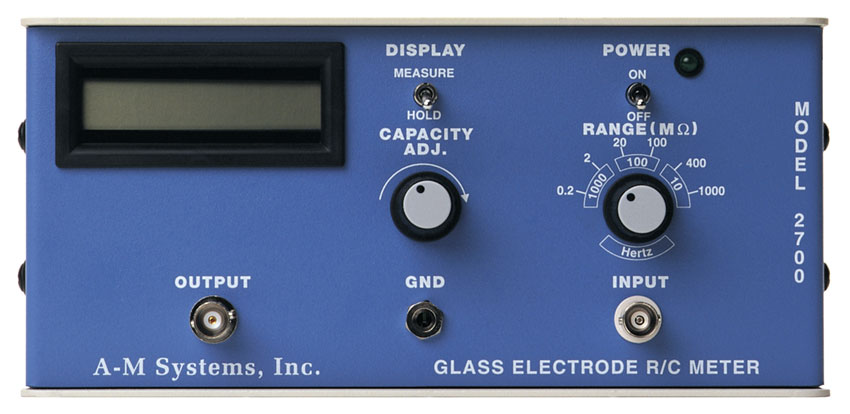

Glass Electrode R/C Meter Model 2700

The Model 2700 includes:

  • Operator's manual
  • Input Cables
  • Remote international power supply

Please note that A-M Systems instruments are not approved for use with human subjects in either a clinical or research environment.

Catalog # Description Price Quantity
870000 Model 2700 Glass Electrode R/C Meter, 110 V, 60 Hz $725.00
Quantity:
870005 Model 2700 Glass Electrode R/C Meter, 220 V, 50 Hz $725.00
Quantity:
749927 Extended Warranty, 2 Year, Model 2700 $125.00
Quantity:



Summary

The Model 2700 Glass Electrode R/C Meter is a precision instrument for measuring both the resistance and capacitance of glass electrodes.  The R/C properties of glass intracellular, extracellular, and ion-selective electrodes can be measured form 10 kΩ to 999 MΩ.  Using capacity compensation, a digital display will indicate the capacitance of your electrode.  Monitoring the test signal output can reveal the signal attenuation properties of the electrode under test.  The values of the resistance and capacitance are displayed on a digital meter for easy reading.
  • Measures Resistance and Capacitance
  • Three separate test signal frequencies
  • Low Noise

Specifications

  • Resistance range: 10 kΩ–999 MΩ
    • Error (10 kΩ–99 MΩ): < 5%
    • Error (100 MΩ–999 MΩ): < 10%
  • Capacitance range: 0–200 pF
    • Error: < 10%
  • Frequency: 1 kHz, 100 Hz, 10 Hz in three ranges
  • Amplitude: 100 mV p-p
  • Input impedance: 1013 Ω at 1 pF
  • Output resistance: 100 Ω
  • External power supply for low noise

FAQ

The following is a list of commonly asked questions regarding this product. If you have any additional questions, please feel free to contact us at 800-426-1306 for further information.

  • Can I get a replacement Instruction Manual for this instrument?
  • My Model 2700 is not working, but our university has an excellent electronics facility. Can we repair the unit ourselves?
  • Can I use this instrument outside of the United States?
  • What are the proper operating and storage conditions for my Model 2700?
  • Can I get a replacement Instruction Manual for this instrument?

    Additional Operator's Manuals are available for download by clicking on the 'Downloads' section from the menu bar at the top of this web page.

    My Model 2700 is not working, but our university has an excellent electronics facility. Can we repair the unit ourselves?

    It is recommended that A-M Systems perform the needed repairs as we are the most familiar with the units. However, if you are confident in your electronic technician's skills, you can always purchase the schematics for the Model 2700 from us and attempt them yourself. Please note that any user-attempted repairs during the warranty period may invalidate the warranty, and might invoke additional charges to correct them if A-M Systems is required to make repairs at a later date.

    Can I use this instrument outside of the United States?

    All of A-M Systems instruments can be modified to work outside of the United States. Typically, this modification is made at the factory (at no additional cost) prior to shipping to our customers. Just inform the customer service department where the instrument will be used, so our technicians can prepare the proper power supply modifications.

    What are the proper operating and storage conditions for my Model 2700?

    The Model 2700 is designed to be used under laboratory conditions. Operate in a clean, dry environment only. Do not operate in a damp environment. Temperatures for storage and operation should be between 5 °C and 40 °C. Storage should be indoors in a cool dry place.
