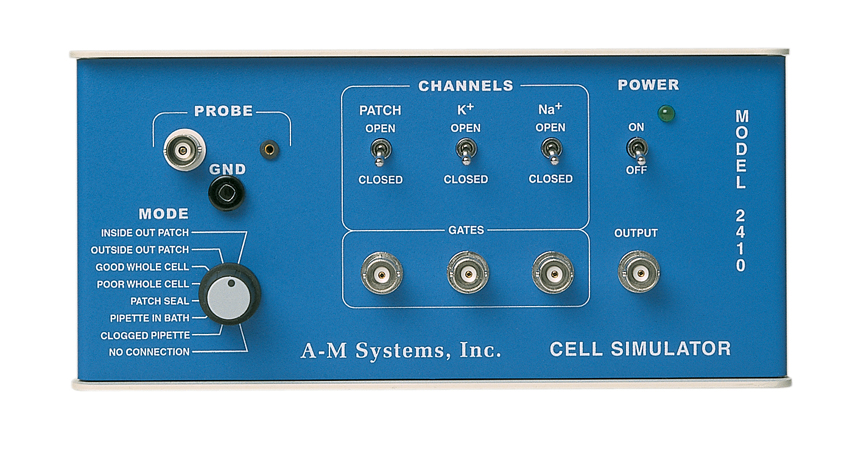

Cell Simulator Model 2410

The Model 2410 includes:

  • Operator's manual
  • Power Supply

Please note that A-M Systems instruments are not approved for use with human subjects in either a clinical or research environment.

Catalog # Description Price Quantity
880010 Model 2410 Cell Simulator, 110 V / 60 Hz $375.00
Quantity:
880015 Model 2410 Cell Simulator, 220 V / 50 Hz $375.00
Quantity:
915120 Replacement Desktop Power Supply, 120 V $140.00
Quantity:
915122 Replacement Desktop Power Supply, 230 V $140.00
Quantity:



Summary

The Model 2410 is an electrical equivalent circuit of several types of cells used during voltage and current clamping. This model can be used to train students in patch clamp technique, or to improve your patch clamping techniques. It is also very useful to test if your patch clamp is functioning properly without having to worry about connections and pipette problems.
  • 7 cell models: clogged pipette, pipette in bath, patch seal, two whole cells, inside-out patch, and outside-out patch.
  • Two standard probe inputs: BNC and 2 mm pin
  • 3 independently gated channels: patch, Na+, and K+ (manual switching also)
  • Gate switching speeds up to 1 ms
  • Built-in Battery Recharger

Specifications

  • Output Gain: 10x ± 0.2%
  • GigaOhm Resistor Precision: <20%
  • Other Component Precision: 1%
  • Minimum Gate Switching Time: 1 ms

FAQ

The following is a list of commonly asked questions regarding this product. If you have any additional questions, please feel free to contact us at 800-426-1306 for further information.

  • Can I get a replacement Instruction Manual for this instrument?
  • My Model 2410 is not working, but our university has an excellent electronics facility. Can we repair the unit ourselves?
  • Can I use this instrument outside of the United States?
  • What are the proper operating and storage conditions for my Model 2410?
  • Can I get a replacement Instruction Manual for this instrument?

    Additional Operator's Manuals are available for download by clicking on the 'Downloads' section from the menu bar at the top of this web page.

    My Model2410 is not working, but our university has an excellent electronics facility. Can we repair the unit ourselves?

    It is recommended that A-M Systems perform the needed repairs as we are the most familiar with the units. However, if you are confident in your electronic technician's skills, you can always purchase the schematics for the Model 2410 from us and attempt them yourself. Please note that any user-attempted repairs during the warranty period may invalidate the warranty, and might invoke additional charges to correct them if A-M Systems is required to make repairs at a later date.

    Can I use this instrument outside of the United States?

    All of A-M Systems instruments can be modified to work outside of the United States. Typically, this modification is made at the factory (at no additional cost) prior to shipping to our customers. Just inform the customer service department where the instrument will be used, so our technicians can prepare the proper power supply modifications.

    What are the proper operating and storage conditions for my Model 2410?

    The Model 2410 is designed to be used under laboratory conditions. Operate in a clean, dry environment only. Do not operate in a damp environment. Temperatures for storage and operation should be between 5 °C and 40 °C. Storage should be indoors in a cool dry place.
