Model 4100 Isolated High Power Stimulator

Price: $5,780.00
Buy It For Life logo

MORE POWER, MORE CAPABILITY, MORE CONNECTIVITY

Powerful, flexible, and convenient single-channel stimulator.
Designed for a wide variety of applications, including field stimulation.

Powerful

± 200 V pulses at 100 mA with duration from 1 µS to 25 hours

Flexible

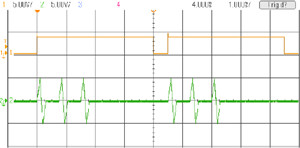

Monophasic, Biphasic, Ramps, and User-Defined waveforms

Convenient

Front Panel controls, Windows, Apple, LabVIEW, MATLAB, and Android

Your Lab's Workhorse Stimulator, Delivering Maximum Performance at a Fair Price

The Model 4100 stimulator delivers stimulus trains comprised of monophasic, biphasic, and/or ramped waveforms. The Model 4100 can be programmed to deliver a variety of common protocols, including LTP/LTD stimulation studies, Paired Pulses protocols, and Stepped Pulse paradigms.

Do you have a unique, custom, or biologically generated signal that you want isolated, scaled, and turned into constant current?

You can use the external signal-in circuitry built into the Model 4100 to convert your signal to an isolated stimulation current.

Download Model 4100 Brochure Download Model 4100 Manual

The Model 4100 stimulator will be a performance leader in the field. It provides pulse durations between 1 µs and 25 hours. The stimulator has built-in isolation and is line-powered, eliminating the need to replace batteries in the middle of an experiment. More powerful than the Model 2100, the Model 4100 Isolated High Power Programmable Stimulator can product ±200 V pulses at 100 mA.

Take a 10-Minute Test-Drive

Design your own waveforms, create pulse trains, store your settings in the library--all online.

Learn how easy it is to control the stimulator from the front panel or through Windows, macOS, iOS, Android, MATLAB, and LabVIEW apps.

Schedule Your Test-Drive Today!

If you have any questions about this instrument, please contact our Neuroscience Product Manager, Dr. Jonathan Bakin.

Features of Model 4100 Model 2100 Model 4100
User Interface
Front PanelYesYes
Windows (Win 7,8,10)NoYes
MATLABNoYes
LabVIEWNoYes
Ethernet AddressableNoYes
Performance–Output
Voltage Max: Monophasic100 V200 V
Voltage Max: Biphasic±50 V±200 V
Current Max10 mA100 mA
Minimum Duration1 µS1 µS
Maximum Duration16 minutes25 hours
IsolatedYesYes
OffsetYesYes
HoldNoYes
Stimulus MonitorNoYes
Performance–Timing
Train Features
By TimeYesYes
By FrequencyNoYes
By CountNoYes
Burst of TrainsNoYes
Link Multiple Waveform DefinitionsNoYes
Event Features
By TimeYesYes
By FrequencyNoYes
By CountNoYes
Waveform Types
MonophasicYesYes
Biphasic–SymmetricYesYes
Biphasic–AsymmetricNoYes
Biphasic–Symmetric w/ InterphaseNoYes
Biphasic–Asymmetric w/ InterphaseNoYes
RampNoYes
TriangleNoYes
TrapezoidalNoYes
Performance–General
Triggering
FreeYesYes
MomentaryYesYes
TTLYesYes
Miscellaneous
USBNoYes
EthernetNoYes
Sync Output Choices39
Auto SettingsYesYes
MemoryNoYes
Error MessagesYesYes
External Signal-In Isolation
(Act as Isolator Only)
NoYes

Our multi-platform software controls all Model 4100 functions, and takes full advantage of today’s operating systems to make implementing your research protocols easy and straightforward.

Common "pinch and spread" touchscreen gestures can be used to change waveform timing and amplitudes; Dragging waveform icons can quickly rearrange the stimulus pattern delivered during a train.

Error messages as well as status messages are clearly displayed.

Multiple instrument programs can be stored on your computer to enable users with different protocols to preserve their settings and quickly import previously used values.

Click to Download Your AMS 4100 Software

AMS 4100 The Train Definition Screen

The Event Definition Screen

Catalog # Product Price
722000 Foot Switch Trigger With 3 Meter Cable
Price: $80.00

Requesting a Quote Is Simple

Add your desired products to cart, and choose "Request Quote" as your payment option at checkout.

We will generate a formal quote and email it to you usually in less than 24 hours.

If you have additional requirements, please add them to the Order Notes and click save (as shown in the image).

How to Request a Quote at A-M Systems
 A-M Systems instruments are not approved for use with human subjects in either a clinical or research environment.
 Due to a large volume of domestic and international orders, fulfillment may take as long as six weeks.
Catalog #:930000
Price: $5,780.00
