Model 3800 MultiStim: 8-Channel Stimulator

Price: $7,800.00
Buy It For Life logo


8 CHANNELS. TOUCH SCREEN. COMPUTER CONTROL.

Deliver series of pulse trains using eight programmable channels, and
scale and convert voltage pulses to constant current with an optional SIU.

A-M Systems Model 3800

Wide Timing Range

1 µs to 250 Hours

Minimum Pulse Interval

As short as 3 µs

Accuracy

Better than 0.02%

MultiStim: Programmable 8-Channel Stimulus Generator Model 3800

Each of the 8 Completely Independent Channels Can Deliver

  • Pulse durations as short as 1 µs over a 15 minute timing interval
  • Up to 1 µs with a 250-hour timing interval

In addition to monophasic and biphasic pulse trains, the Model 3800 also delivers traditional protocols such as Paired Pulses and Stepped Pulses. Each channel also has a SUM output, whereby the signals of other channels can be summed together for complicated waveform protocols.

Full Triggering Options Include

  • 8 channel specific TTL BNC connectors
  • 3 generic TTL BNC connectors that any combination of channels can be linked to
  • interchannel triggering

There are 3 gate TTL bnc connectors that can be linked to any channel as well. Pulse or Train TTL sync pulses are provided.

By using one channel to trigger another channel, you can combine the timing ranges, resulting in microsecond pulses occurring every 250 hours (if you needed such a schedule!).

Stimulus program sets can be stored on-board the instrument as well as online. MATLAB® and LabVIEW SDK and drivers are also available.

This device is a constant voltage device, capable of producing 10 V biphasic pulses. An optional Model 3820 stimulus isolation unit can scale and convert the output into constant current.

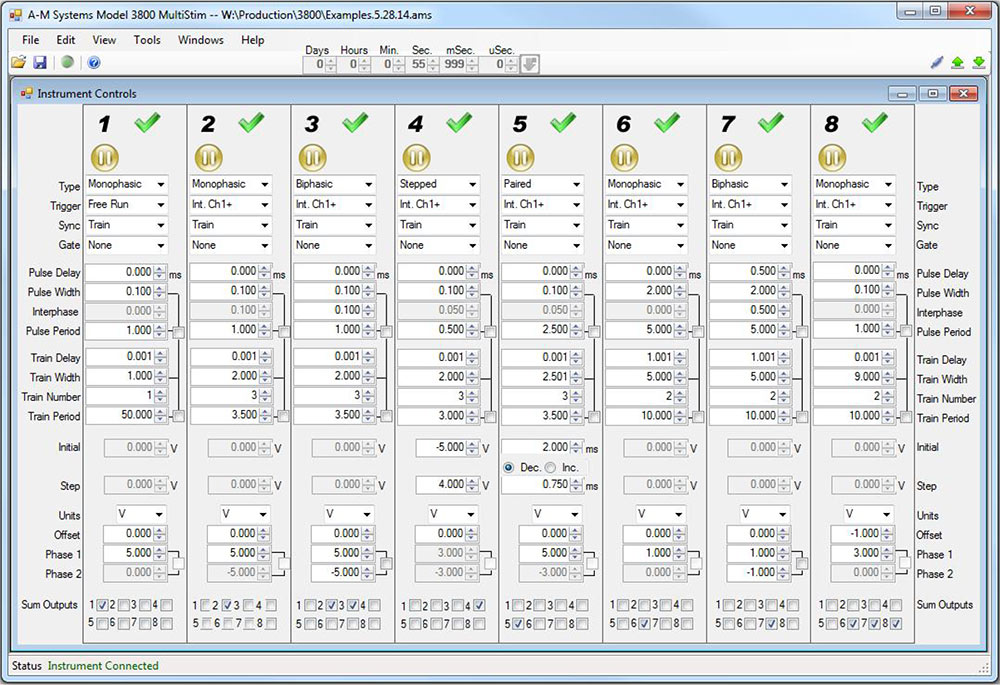

Full Control of Model 3800 From the Touch Screen or Windows Software

All of the Model 3800's functions can be set by the Windows software or through the LCD touch screen.

Control the Model 3800 With a Windows Program or Front-Panel Touch Screen

Schedule Your Test-Drive of the Model 3800 Today!

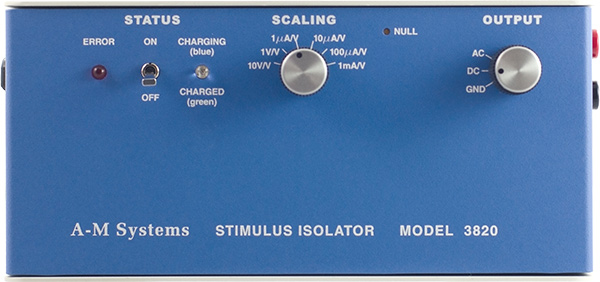

Model 3820 Stimulus Isolation Unit

Model 3820 Stimulus Isolation Unit
  • Isolate, convert, and scale the output of a single channel of the Model 3800 into either constant current or constant voltage.
  • ± 60 V at 10 mA, with a 500 kHz bandwidth.
  • Battery-powered to ensure proper stimulus isolation.
  • Recharge the batteries in as little as 5 hours from the Model 3800 base unit.

Test Drive the Model 3800

Now you can test-drive the Model 3800 from the comfort of your home or office.

Schedule Your Demo!

The Model 3800 includes:

  • USB Cable: Type A to Type B
  • Control software
  • Operator's manual
  • Rack mount hardware
  • Power supply
Timing Rage1 µs to 250 Hours
Minimum Pulse Duration1 µs monophasic; 2 µs biphasic
Minimum Pulse Interval3 µs
Output± 10 V with 1mV resolution
Timing AccuracyBetter than 0.02%
With Optional SIU± 60 V @ 10 mA, with selectable AC coupling; 500 kHz bandwidth
Built-in Stimulus ProtocolsMonophasic, Biphasic, Paired Pulse, and Stepped pulse
Triggering8 Channel-specific rear panel BNCs; 3 non-specific front panel BNCs that can be assigned to any single or set of channels; Interchannel triggering
Gating3 non-specific front panel BNCs that can be assigned to any single or set of channels; Interchannel gating
ControlVia Front Panel touch screen or free PC compatible software application. Software programming guide is available (Serial communication over USB).

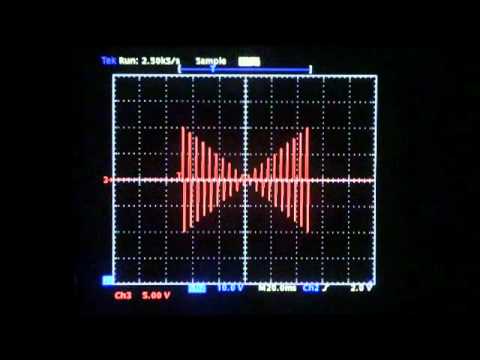

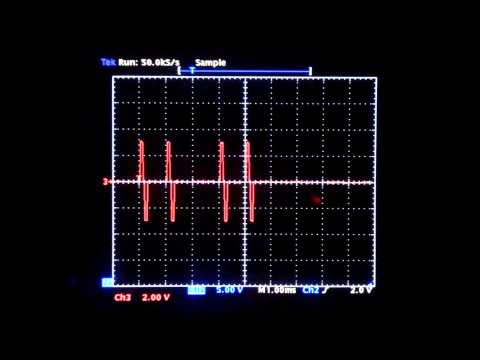

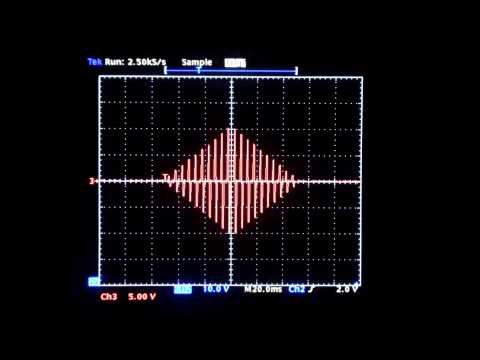

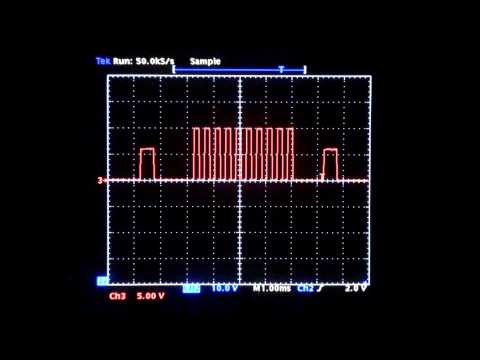

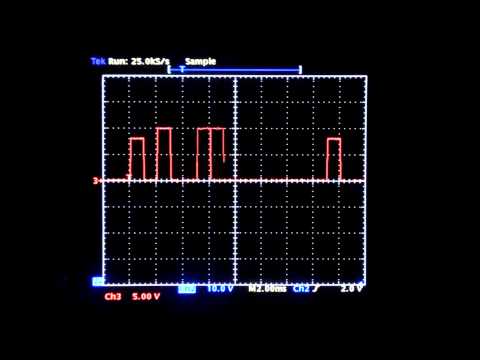

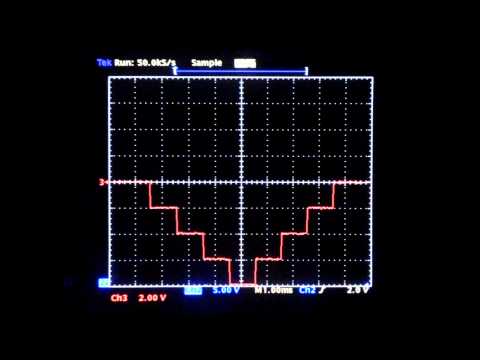

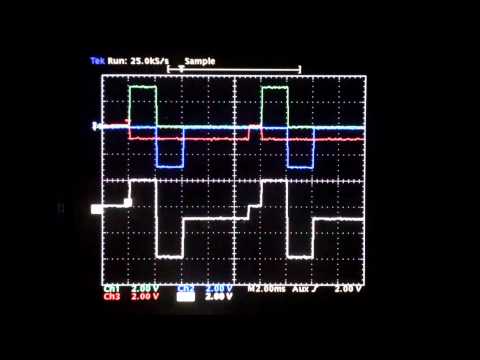

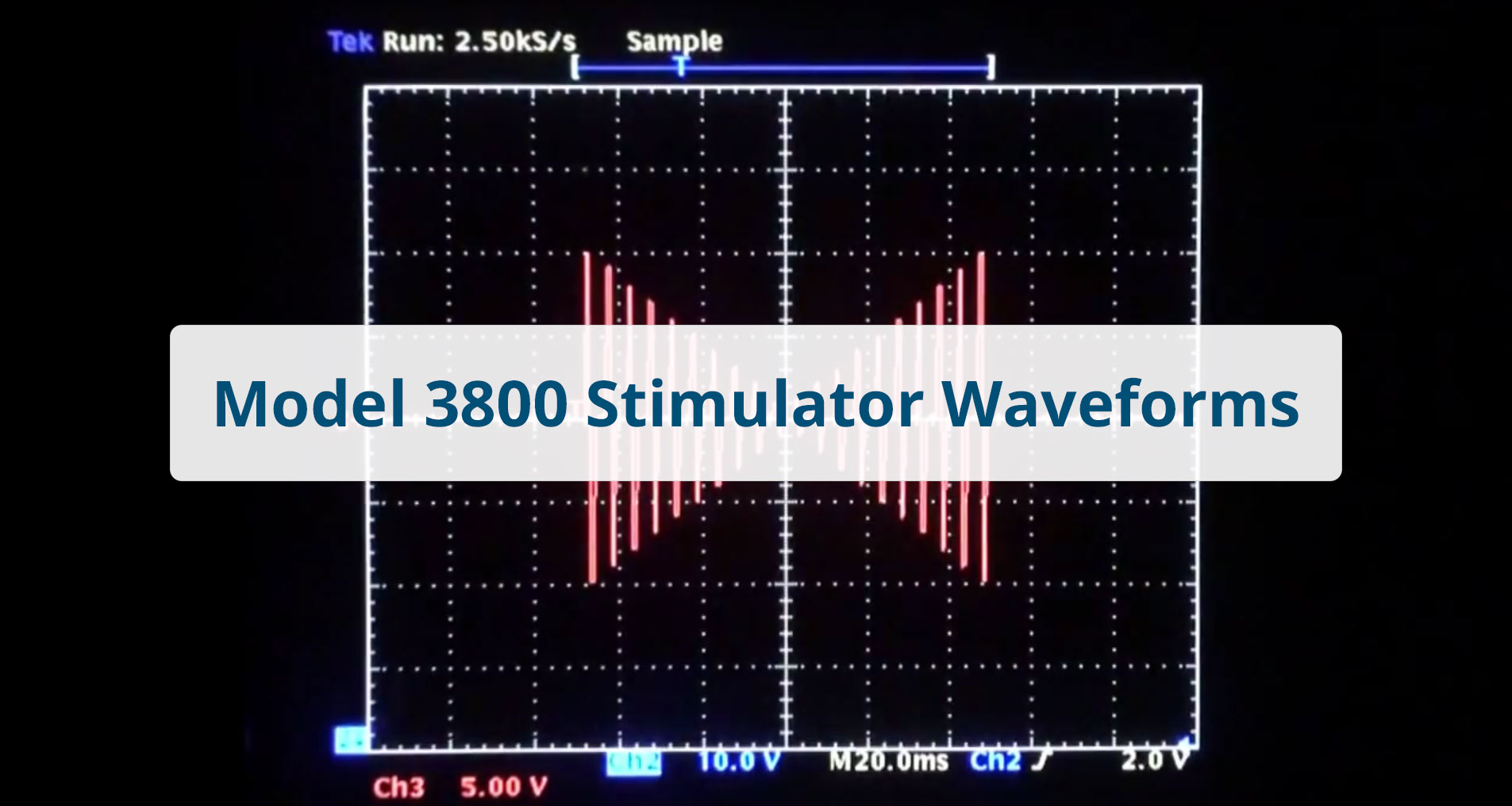

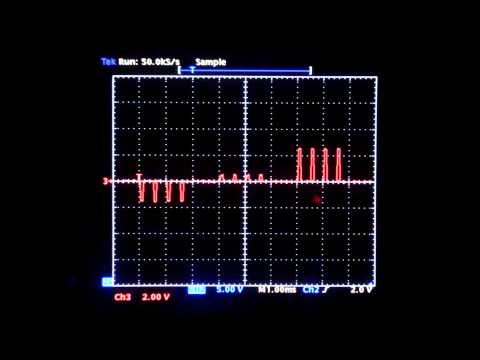

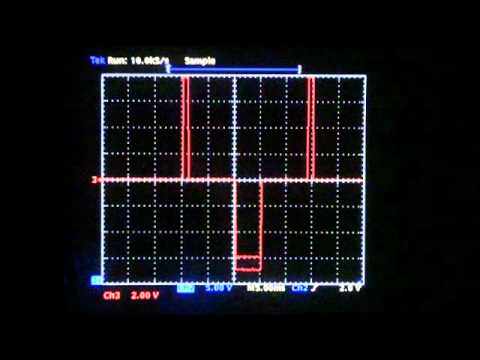

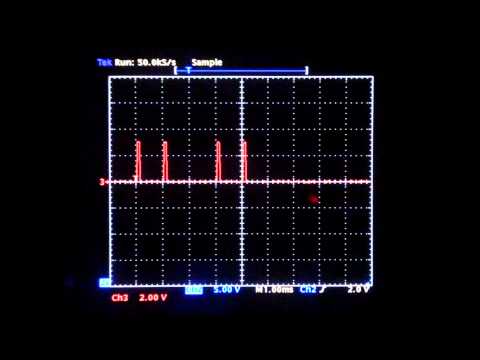

Introduction to Model 3800 Waveform Outputs

Image Title
Catalog # Product Price
710500 Stimulus Isolation Unit (SIU) Model 3820 for A-M Systems MultiStim
Price: $1,320.00
722000 Foot Switch Trigger With 3 Meter Cable
Price: $80.00
